Startseite /Produkte/Automatische Barrier Tor/Automatic Barrier Gate with DC24V Brushless Motor, Intelligent Anti-Collision Protection, and 6M Boom Length for Parking Lots

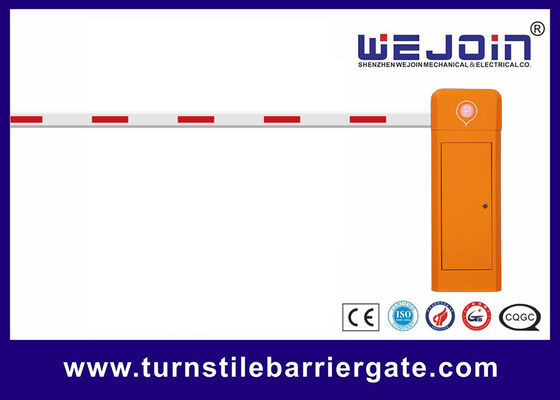

Automatic Barrier Gate with DC24V Brushless Motor, Intelligent Anti-Collision Protection, and 6M Boom Length for Parking Lots

50 eingestellt
MOQ
Verhandelbar
Preis
Automatic Barrier Gate with DC24V Brushless Motor, Intelligent Anti-Collision Protection, and 6M Boom Length for Parking Lots
Eigenschaften Galerie Produkt-Beschreibung Fordern Sie ein Zitat
Eigenschaften
Technische Daten
Auslegertyp: Gerader Boom / Floding Boom
Stromspannung: Wechselstrom 110V-265V
Auslegerlänge: Max 6m (angepasst)
Garantie: 2 Jahr
Gehäusefarbe: Gold
Anwendung: Parkplatz
Hervorheben:

DC24V Brushless Motor Automatic Barrier Gate

,

Intelligent Anti-Collision Protection Boom Barrier Gate

,

6M Boom Length Vehicle Barrier Gate
Grundinformation
Herkunftsort: China
Markenname: WEJOIN
Zertifizierung: CE ISO
Modellnummer: CB01VF-I
Zahlung und Versand AGB
Verpackung Informationen: Karton
Lieferzeit: 15 Arbeitstage nach der Zahlung
Zahlungsbedingungen: T/T
Versorgungsmaterial-Fähigkeit: 10000 SÄTZE/MONAT
Produkt-Beschreibung
Automatic Barrier Gate with DC24V Motor and Durable Transmission Mechanism
This automatic barrier gate features a DC24V brushless motor and robust transmission mechanism designed for long-lasting, stable performance in high-frequency vehicle access control applications.
Key Features & Functions
DC24V Brushless Motor - Powerful & Durable
  • Equipped with DC24V brushless motor and worm gear + planetary reduction transmission
  • High output torque with low wear and smooth operation
  • Ideal for high-frequency vehicle access control and continuous duty cycles
DC Variable Frequency Control System
  • Precise speed and motion control with soft start and soft stop
  • Reduced mechanical impact significantly extends service life
  • Adjustable opening/closing speed to match different traffic flow requirements
Intelligent Anti-Collision Protection
  • Auto-reversing on obstruction for enhanced safety
  • Fast response to protect vehicles and pedestrians
  • Supports optional loop detector, infrared photocell, and radar anti-crush systems
LCD Control Panel - Easy Setup & Maintenance
  • Large LCD display with English visual menu
  • Simple parameter configuration and troubleshooting
  • User-friendly for installers and system integrators
Multiple Control & Communication Interfaces
  • 433MHz remote controller with easy pairing and expansion
  • Relay signal output and RS485 communication interface
  • Seamless integration with parking management and license plate recognition systems
Emergency Operation During Power Failure
  • Manual boom lifting via handwheel during power-off
  • Optional DC24V backup battery or super capacitor support
  • Ensures uninterrupted vehicle passage in emergencies
Controller Interface Specifications
Wire Control Interface
This interface is available for parking systems and external controllers:
  • UP: Short circuit "UP" and "GND"
  • Down: Short circuit "Down" and "GND"
  • Stop: Short circuit "Stop" and "GND"
Anti-smashing Interface
  • Infrared Photocell: Boom lifts up when short circuiting "Infrared photocell interface" and "GND" during boom down
  • Loop Detector: Boom lifts up when short circuiting "loop detector interface" and "GND" during boom down; in up limit position, boom falls down automatically after interfaces disconnect
RS485 Communication Interface
Used for controlling barrier gates or checking status via computer or system; enables online synchronous control of paired barrier gates.
Technical Specifications
Parameter WJCB01VF-H WJCB01VF-I
Running Speed 1-4S 2-6S
Boom Type Straight Straight
Max Boom Length 4.5M 4M~8M
Input Voltage AC100-265V
Frequency 50/60HZ
Motor Voltage DC24V
Enclosure Rating IP54
Working Temperature -30°C ~ +70°C
MTBF 6,000,000 times
Traffic Flow Application 24 hours uninterrupted operation
Max Motor Power 240W 180W
Max Motor Speed 500r/min 360r/min
Max Torque 280N.m 320N.m
Automatic Barrier Gate with DC24V Brushless Motor, Intelligent Anti-Collision Protection, and 6M Boom Length for Parking Lots 0
