Startseite /Produkte/Automatische Barrier Tor/WEJOIN DC 24V Brushless Motor Automatic Barrier Gate with Variable Frequency Control and 6M Boom Length for Parking Lots

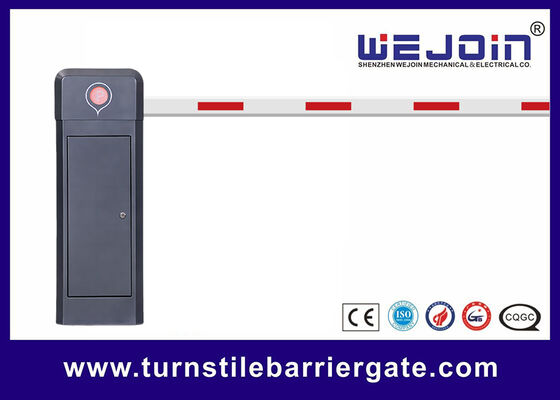

WEJOIN DC 24V Brushless Motor Automatic Barrier Gate with Variable Frequency Control and 6M Boom Length for Parking Lots

50 eingestellt
MOQ
Verhandelbar
Preis
WEJOIN DC 24V Brushless Motor Automatic Barrier Gate with Variable Frequency Control and 6M Boom Length for Parking Lots
Eigenschaften Galerie Produkt-Beschreibung Fordern Sie ein Zitat
Eigenschaften
Technische Daten
Auslegertyp: Gerader Boom / Floding Boom
Stromspannung: Wechselstrom 110V-265V
Auslegerlänge: Max 6m (angepasst)
Garantie: 2 Jahre
Gehäusefarbe: Gold
Anwendung: Parkplatz
Hervorheben:

DC 24V Brushless Motor Automatic Barrier Gate

,

Variable Frequency Control Parking Barrier Gate

,

6M Boom Length Vehicle Access Control Barrier
Grundinformation
Herkunftsort: China
Markenname: WEJOIN
Zertifizierung: CE ISO
Modellnummer: CB01VF-I
Zahlung und Versand AGB
Verpackung Informationen: Karton
Lieferzeit: 15 Arbeitstage nach der Zahlung
Zahlungsbedingungen: T/T
Versorgungsmaterial-Fähigkeit: 10000 Sätze/Monat
Produkt-Beschreibung
WEJOIN DC Variable Frequency Barrier Gate
High-Performance Automatic Parking Barrier for demanding access control applications
Key Features & Capabilities
DC 24V Brushless Motor System
Equipped with DC24V brushless motor and worm gear + planetary reduction transmission
High output torque with low wear and smooth operation
Ideal for high-frequency vehicle access control and continuous duty cycles
DC Variable Frequency Control
Precise speed and motion control with soft start and soft stop functionality
Reduced mechanical impact significantly extends service life
Adjustable opening/closing speed to match different traffic flow requirements
Intelligent Anti-Collision Protection
Auto-reversing on obstruction for enhanced safety
Fast response to protect vehicles and pedestrians
Supports optional loop detector, infrared photocell, and radar anti-crush systems
Manufacturer Profile
The WEJOIN DC Variable Frequency Barrier Gate is a next-generation automatic vehicle access control solution, independently developed by Shenzhen Wejoin Mechanical & Electrical Co., Ltd. Designed for high-traffic, 24/7 operation environments, this barrier gate combines a DC24V brushless motor with advanced variable frequency control technology, delivering superior stability, safety, and service life.
Widely used in parking lots, toll stations, commercial complexes, residential communities, industrial parks, airports, and logistics centers.
Technical Specifications
Model WJCB01VF-H WJCB01VF-I
Running Speed 1-4S 2-6S
Boom Type Straight Straight
Max Boom Length 4.5M 4M~8M
Input Voltage AC100-265V
Frequency 50/60HZ
Motor Voltage DC24V
Enclosure Rating IP54
Working Temperature -30°C ~ +70°C
MTBF 6000000 times
Traffic Flow Application 24 hours uninterrupted operation
Max Motor Power 240W 180W
Max Motor Speed 500r/min 360r/min
Max Torque 280N.m 320N.m
